My-Pool app
Allows you to view and control the pool parameters and system functions anytime from anywhere. An intuitive interface will alert about the state of the pool and prompt to act if and when needed.
The next generation of pool
sanitation systems
Simple and intuitive control from the palm of your hands
Innovative salt chlorination system that is controlled by an app
Resilience G’s combines an intuitive, simple operating interface and innovative design. The system, automatically analyses and balances pool water using ‘My-Pool’ app.
Unique features
- Full control from near & far using a dedicated app
- Monitoring & control of pH and ORP values (in Resilience G Plus model)
- Connect via WiFi/Bluetooth/LAN
- Salinity water level indication
- Turbo activation mode
- User friendly alerts
- Sealed and splash-proof (IP65)
- Wide salinity range 2,000-7,000 ppm
- Pool cover status indicator
- Automatic winter protection
System components
- Smart controller
- WiFi module
- Resilience G / Resilience G+
- Dosing acid pump
Perfect sanitation - compact & smart solution
An electrolysis cell assembly that combines a flow switch, pH, ORP, temperature and salinity sensors as well as built-in acid injection inlet.
Resilience G
- Simple and easy to install
- Patented replaceable electrolysis cartridge
- Bi-directional flow switch
- Built-in salinity & temperature sensors
- Designed to work with variable speed pumps
Resilience G Plus
- Automatic balancing of pool water
- Constant monitoring & control of ORP & chlorine values
- Integral sampling chamber with easy maintenance access
- Built-in acid injection inlet
Cell model
G12 / G12 Plus
G18 / G18 Plus
G40 / G40 Plus
G60 / G60 Plus
Max. pool size - m3(gal)
40 (12k)
50 (18k)
80 (40k)
120 (60k)
Chlorine output - g/h (lb/24h)
12 (0.63)
14 (1)
26 (1.27)
36 (1.9)
— Max. pool size is subject to using Cyanuric acid to balance pool water. Suitable for private pools.
– For specialty pools (overflow pools, lap pools, hydrotherapy pools, public commercial pools) and for pools with higher chlorine requirements it is recommended that you choose a larger cell model.
Two options for
dosing acid pump:
SIMPLY SMART, ALL-IN-ONE IN-LINE SALT ELECTROLYSIS
AND POOL AUTOMATION SYSTEM
Upgrade your pool maintenance game with a simple, easy to install and operate salt system and pool automation system that does more while requiring you to do less.
Integrating a sleek and seamless pool automation platform with all the Magen eco-Energy salt electrolysis features you already know and love, ‘resilience G’ is the smart and simple solution for pool owners and operators of all types.
Continuous Connectivity
Stay connected to the My-Pool app at all times via WiFi / Bluetooth / external LAN
All-in-one
in-line G Unit
Compact and easy to install and maintain, integrated electrolysis cartridge. pH, ORP, water temperature and Salinity sensors as well as an acid injection inlet and bi-directional flow.
Smart Control Station
Two features in one smart control station that (1) controls and regulates pool water and (2) automates control over all your pool equipment, via the My-Pool app.
MyPool App
An intuitive interface designed to suit all types of pool managers. Now, you can control your pool environment, anytime and from anywhere.
All-in-One in-line, integrated electrolysis cell
The compact, innovatively designed automatic pool monitoring, water treatment and acid injection system that eliminates the need for multiple installations and maintenance calls. Easy to install.
Saves you time and space, while ensuring clean and safe water, for enjoyable swimming experiences.
1 Electrolysis Cartridge
1 Patented replaceable electrolysis cartridge
2 Bi-directional flow sensor
3 Built in salinity and water temperature sensors
4 Gas protection sensor
5 Designed to work with variable speed pumps
2 Smart G Unit
1 Continuous measurement of pH and ORP
2
Independent siphonic chamber for precise chlorine measurement:
- Directly tests the pool water
- Probes always remain in the water
3 Easy to clean the chamber
4 Transparent cel
3 Built-in acid injection
1 Continuous measurement and control of pH & ORP
2 Patent pending built-in acid injection Self-cleaning mode
Cell Model
G 12
G 18
G 40
G 60
Maximum pool size in cub. mtrs*
Ambient Temperature
Above than 26 °C
Less than 26 °C
Above than 26 °C
Less than 26 °C
Less than 26 °C
Less than 26 °C
Above than 26 °C
Less than 26 °C
40
50
50
60
80
120
120
150
Chlorine Output g/h
12
14
26
36
Cell Model
G 12
Maximum pool size in cub. mtrs*
Ambient Temperature
Above than 26 °C
Less than 26 °C
40
50
Chlorine Output g/h
12
Cell Model
G 18
Maximum pool size in cub. mtrs*
Ambient Temperature
Above than 26 °C
Less than 26 °C
50
60
Chlorine Output g/h
14
Cell Model
G 40
Maximum pool size in cub. mtrs*
Ambient Temperature
Less than 26 °C
Less than 26 °C
80
120
Chlorine Output g/h
26
Cell Model
G 60
Maximum pool size in cub. mtrs*
Ambient Temperature
Above than 26 °C
Less than 26 °C
120
150
Chlorine Output g/h
36
- Maximum pool size is subject to using Cyanuric acid to balance the pool’s water.
- Suitable for private pools. For specialty pools (overflow pools, lap pools, hydrotherapy pools, public/commercial pools) and for pools with higher chlorine requirements (in warmer climates, for higher bather loads, etc.), it is recommended that you choose a larger model.

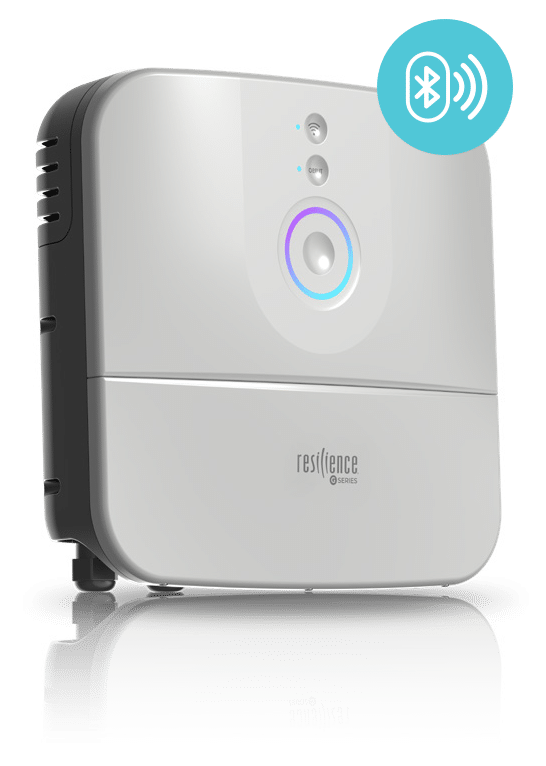

Salt Electrolysis and Pool Automation Smart Control Station
The most advanced, innovative and robust control system.
The Smart Control Station leverages an intuitive and user-friendly structure, to automatically and precisely analyze and regulate the pool water, while also controlling the pool environment via the My-Pool app.
1 Simply Smart Display
1 Three led touch buttons opperation
2 Status indicator LED ring
3 Accessible service panel
2 Features
1 Connect via WI-FI/Bluetooth/external LAN
2 pH and ORP control system
3 Pool cover mode
4 Operates with a peristaltic / diaphragm dosing pump
5 Working salinity range - 1,500-7,000 ppm
6 Maximum chlorine production accuracy (5%)
7 Automatic winter protection
8 Working salinity range - 1,500-7,000 ppm
9 Sealed and splash-proof
10 Acid level tank indicator
11
Lightweight (under 2kg/3.8 lbs)
3 Automation
1
Four outlets connecting to pump, lighting, waterfall and other features
2 Two AUX outputs
3 Filter pressure sensor
My-Pool App
Gain complete control over your pool environment, at anytime and from anywhere. Understand the status of your pool and its environment, and stay on top of its ongoing maintenance and repair needs – no technical knowledge required!
The app’s intuitive interface operates as a red-yellow-and-green stoplight method, enabling you to better understand the status of the pool.
Download on the
App Store
GET IT ON
Google Play
Ideal for all types of pool managers!
For Pool Owners
The app's user-friendly interface allows you to get up-to-date information on the status of your pool with no need of technical experience, whatsoever!
For Pool Installers / Maintenance Workers
Perform troubleshooting and diagnostic testing in the palm of your hand, with a simple, easy-to-use interface that allows you to up your game and simultaneously manage multiple pools.
For Pool Management Companies
Enables the simultaneous management of thousands of pools, empowering pool management companies to prioritize maintenance and repairs.
